Key Specifications of the TR Series | ||
---|---|---|
Model | TR8 | TR8-E |
Maximum Load(kg) | 8kg | 8kg |
Reach(mm) | 818mm | 818mm |
Repeatability (mm) | ±0.02mm | ±0.02mm |
Ingress Protection Rating | IP67 | IP67 |
Control Cabinet | TRC-Micro | SRC-Micro |
TR Series Robots
See and Achieve Instantly, Born with Speed
TR8/TR8-E. Speed With Passion.
TR Series
See and Achieve Instantly, Born with Speed
TR8/TR8-E. Speed With Passion.
TR Series
See and Achieve Instantly, Born with Speed
TR8/TR8-E. Speed With Passion.
Robust Loading Capacity
Maximum load of 8 kg.
Excellent performance and stability even under heavy loads.
Robust Loading Capacity
Maximum load of 8 kg.
Excellent performance and stability even under heavy loads.
Robust Loading Capacity
Maximum load of 8 kg.
Excellent performance and stability even under heavy loads.
![](https://www.tianjizn.com/wp-content/uploads/2021/08/TR-front-2.png)
Ingress Protection Rating IP67,
Resistant to Water and Dust
Stable operation even in harsh environments such as water spraying, CNC loading/unloading, and special operations.
The smooth and streamlined structural design minimizes the number of exposed bolts,
preventing the accumulation of dust and cutting oil.
![](https://www.tianjizn.com/wp-content/uploads/2021/08/TR-front-2.png)
Ingress Protection Rating IP67,
Resistant to Water and Dust
Stable operation even in harsh environments such as water spraying,
CNC loading/unloading, and special operations.
The smooth and streamlined structural design minimizes the number of exposed bolts,
preventing the accumulation of dust and cutting oil.
Ingress Protection Rating IP67
Resistant to Water and Dust
Stable operation even in harsh environments such as water spraying,
CNC loading/unloading, and special operations.
The smooth and streamlined structural design minimizes the number of exposed bolts,
preventing the accumulation of dust and cutting oil.
![](https://www.tianjizn.com/wp-content/uploads/2021/08/TR-front-2.png)
Compact and Powerful
With a compact structure and slender body, it can exert strong power in confined spaces.
The control cabinet is small and easy to place, saving space and eliminating space concerns.
Compact and Powerful
With a compact structure and slender body, it can exert strong power in confined spaces. The control cabinet is small and easy to place, saving space and eliminating space concerns.
Compact and Powerful
With a compact structure and slender body, it can exert strong power in confined spaces. The control cabinet is small and easy to place, saving space and eliminating space concerns.
Precision Work Versatility
The robot can be equipped with various grippers and sensors,
suitable for high-precision assembly, inspection, grinding, polishing, and applications in different industries.
Precision Work Versatility
The robot can be equipped with various grippers and sensors,
suitable for high-precision assembly, inspection, grinding, polishing, and applications in different industries.
Precision Work Versatility
The robot can be equipped with various grippers and sensors,
suitable for high-precision assembly, inspection, grinding, polishing, and applications in different industries.

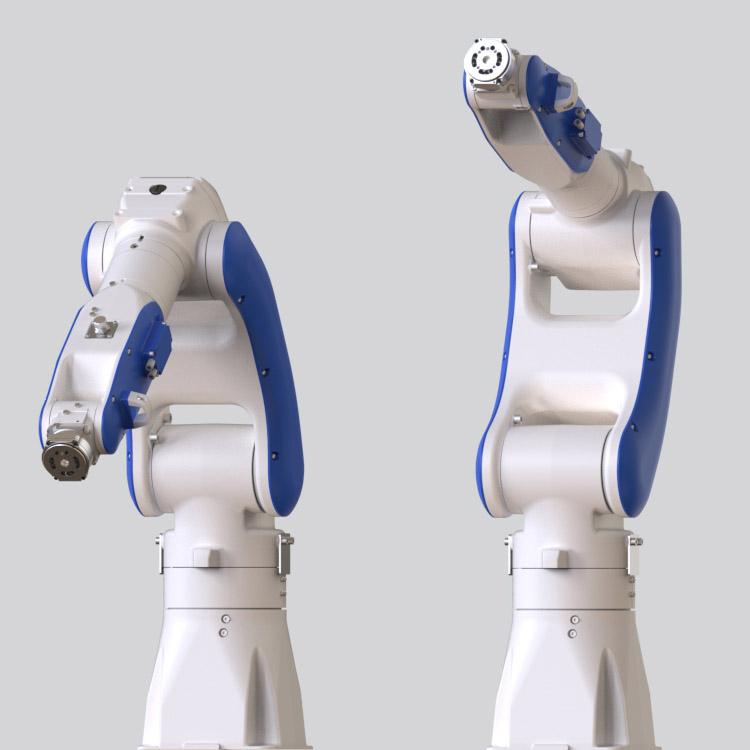

Excellent Value
The TR8-E retains optional function ports for future expansion to meet new needs, avoiding over-specification.
![](https://www.tianjizn.com/wp-content/uploads/2021/08/tr-section5-2.jpg)
Excellent Value
The TR8-E retains optional function ports for future expansion to meet new needs, avoiding over-specification.
![](https://www.tianjizn.com/wp-content/uploads/2021/08/tr-section5-2.jpg)
Excellent Value
The TR8-E retains optional function ports for future expansion to meet new needs, avoiding over-specification.
![](https://www.tianjizn.com/wp-content/uploads/2021/08/tr-section5-2.jpg)
Key Specifications of the TR Series | ||
---|---|---|
Model | TR8 | TR8-E |
Maximum Load(kg) | 8kg | 8kg |
Reach(mm) | 818mm | 818mm |
Repeatability (mm) | ±0.02mm | ±0.02mm |
Ingress Protection Rating | IP67 | IP67 |
Control Cabinet | TRC-Micro | SRC-Micro |
Key Specifications of the TR Series | ||
---|---|---|
Model | TR8 | TR8-E |
Maximum Load(kg) | 8kg | 8kg |
Reach(mm) | 818mm | 818mm |
Repeatability (mm) | ±0.02mm | ±0.02mm |
Ingress Protection Rating | IP67 | IP67 |
Control Cabinet | TRC-Micro | SRC-Micro |
Data Download
TR8宣传页.pdf | 3 MB
Download
TR8-E宣传页.pdf | 2 MB
Download
TR8产品外观2D | 2 MB
Download
TR8-E产品外观2D | 2 MB
Download
TR8 3D图 | 23 MB
Download
TR8-E 3D图 | 23 MB
Download
TR8 机器人使用说明书_TD5170001_202110_V6 | 9 MB
Download
TR8-E 机器人使用说明书_1021200008_202005_V0 | 27 MB
Download
For more information, please visit Download
